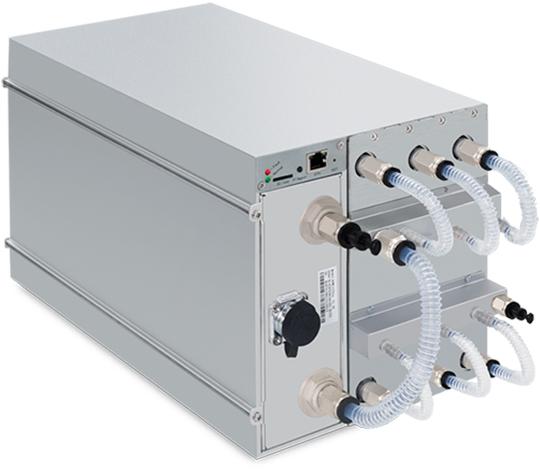

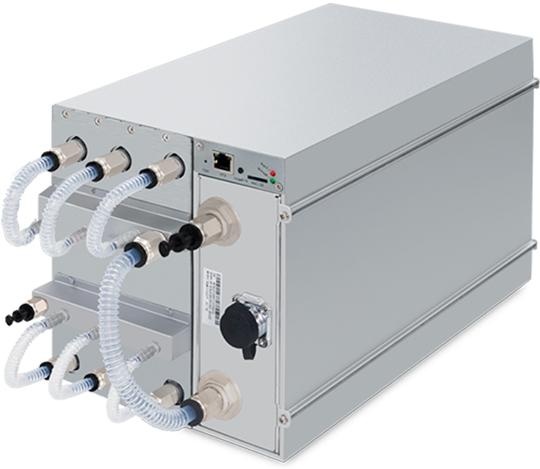

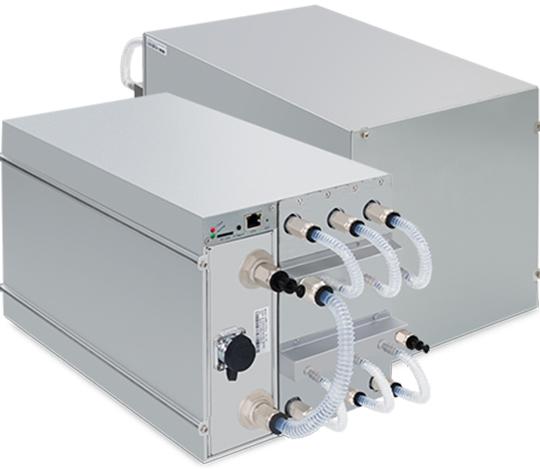

On May 23, BITMAIN released the ANTMINER S19e XP Hyd. and launched it for sale. The ANTMINER S19e XP Hyd. has a hashrate of 251T, with an energy efficiency of 22J/T.
| Product Glance | |
| Model | S19e XP Hyd. |
| Algorithm | Cryptocurrency | SHA256 | BTC/BCH/BSV |
| Typical Hashrate, TH/s(1-1) | 251 |
| Power on wall @35°C, Watt(1-1) | 5522 |
| Power efficiency on wall @35°C, J/TH(1-1) | 22 |
| Detailed Characteristics | |
| Power supply | |
| Power supply AC input voltage, Volt(2-1) | 380~415V AC |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(2-2) | 12 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm | 410*170*209 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg | 12.8 |
| Gross weight, kg | 14.1 |
| Working fluid(2-5) | Deionized water/Pure water |
| Environment Requirements | |
| Inlet water temperature, °C(2-3) | 20~50 |
| Water flow, L/min | 8.0~10.0 |
| Water pressure, bar | ≤3.5 |
| Working fluid(2-4) | Antifreeze/ Deionized water/ Pure water |
| Liquid PH | 8.5~9.5 |
| Diameter of water pipe connector, mm | DN10 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
NOTE:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(1-2) Inlet water temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) Three-phase AC input, 12 A per wire.
(2-3) If the inlet water temperature is lower than 20 °C, the miner cannot be started. For the external dry cooler (EC2-DT),
• if the outlet water temperature is 35°C, the maximum ambient temperature is 30°C;
• if the outlet water temperature is 45°C, the maximum ambient temperature is 40°C;
• if the outlet water temperature is 50°C, the maximum ambient temperature is 45°C.
(2-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
Minable coins
Shipping Information：
- Shipments will be scheduled on a first-paid-first-ship basis for orders on which we has received full payment.
- For the pre-order, the specific delivery date of which is subject to the factory. If there is any update on the schedule, BITMARS would keep the buyer fully informed.
| Delivery from | Shenzhen /HK |
| Weight per Unit | 13.6Kg |
| HS Code | 8471.41.90 00 |
| Export Carton Dimensions L/W/H | 57.0*31.6*43.0Centimeters |
| Lead Time | Within 3–7 working days |
| Units per Export Carton | 1.0 |
| Warranty | Official after-sales |
Main Export Markets
Warranty
1. Kindly note that customer service for the product shall not be available if the miner is operated without the water-cooling container due to operational issues.
2. A 365-day warranty period is provided starting from the shipping date. We will cover shipping costs when shipping a replacement unit within the warranty period.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without BITMAIN’s prior consent, BITMAIN will not be liable for any damage arising therefrom.
