Mulity-function Packing Machine

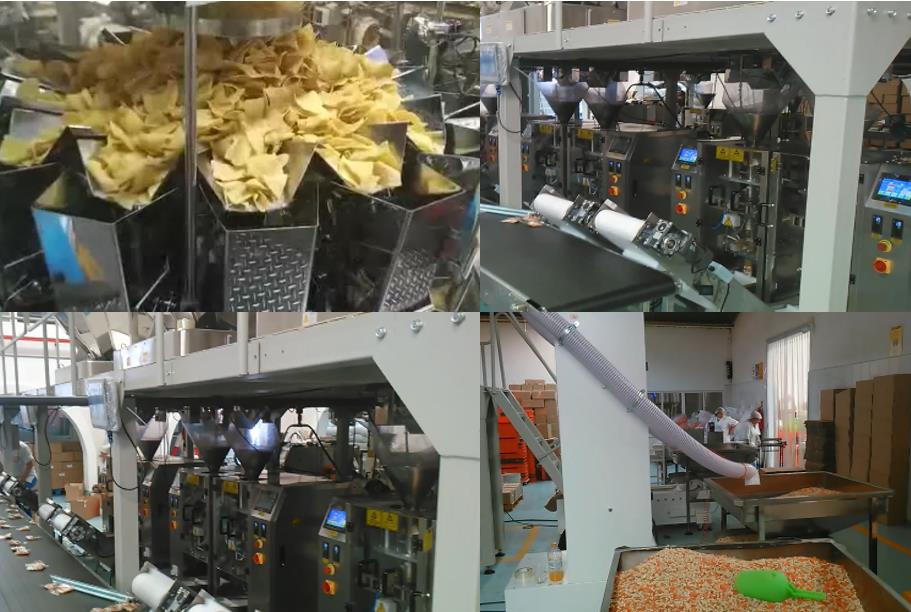

Product Pictures:

Product Descriptions：

1. This machine can automatically complete following work: material lifting–multi-head weighter measuring–coding–bag making–filling–gas injection / exhaust (optional)–sealing–counting– conveying finished products–sorting finished products.
2. Imported PLC servo and pneumatic control system and super touch screen to form the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, when replacement product can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.
5. Can make hole punching device after customer’s request.
6. All the contact materials parts are stainless steel 304.

Parameters
Item		Content
Packing Speed		10-60bags/min
Bag size		W:80-350mm;L80-450mm&600mm
Bag making mode		Pillow-type bag,Standing bag, punching device
Range of measuring		0-5000ml
The Max width of packing film		720mm
Air consumption		0.8Mpa300L/min
Main powerivoltage		4KW/220V
Dimension		(L)1430(W)1400(H)1600mm
The weight of switchboard		780kg
Reel Out Diameter		500MM
Core Inner Diameter		76MM
Film material suggestion		POPP/CPP,POPP/PE,PET/VMPET/PE,PET/AL/PE
Main Components List
Number	Name	Brand	Country of Brand
1	Touch screen	SIEMENS	GERMANY
2	PLC	SIEMENS	GERMANY
3	Servo motor	MITISUBISHI	JAPAN
4	Servo motor	MITISUBISHI	JAPAN
5	Horizontal cylinder	SMC	JAPAN
6	Vertical cylinder	SMC	JAPAN
7	Cutting cylinder	SMC	JAPAN
8	Oil-water separator	SMC	TAIWAN
9	Circuit breaker	SCHNEIDER	FRENCH
10	Emergency stop switch	SCHNEIDER	FRENCH
11	Intermediate relay	OMRON	JAPAN
12	Solid Valve	JINQI	TAIWAN
13	Photo cell	BAIDELI	TAIWAN
14	Thermometer control	OMRON	JAPAN
15	Date printer	TIANYI	CHINA
16	Transducer	Delta	CHINA
17	Winding Motor	TAIBANG	CHINA

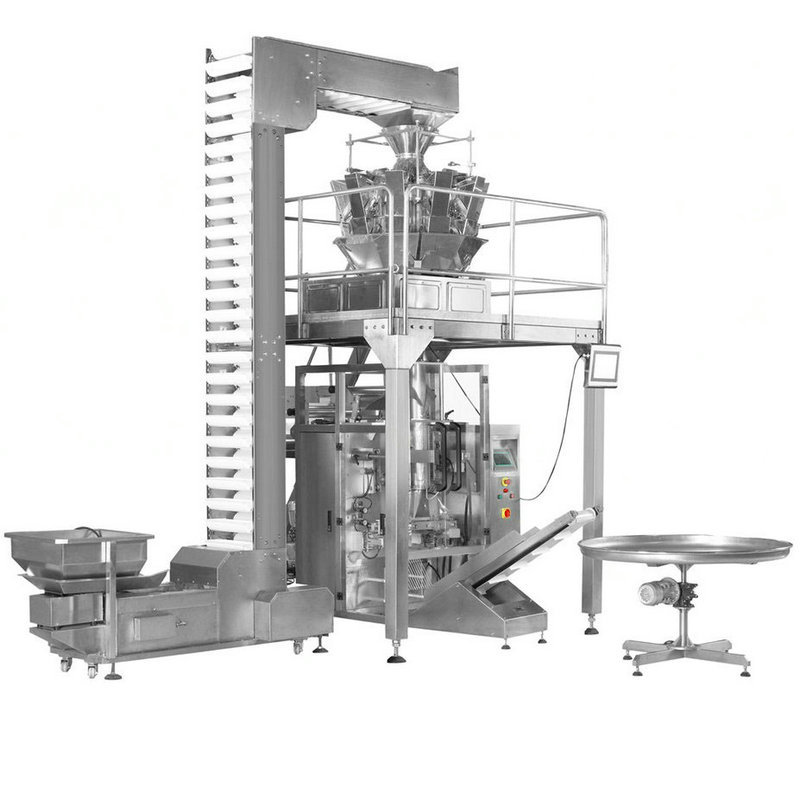

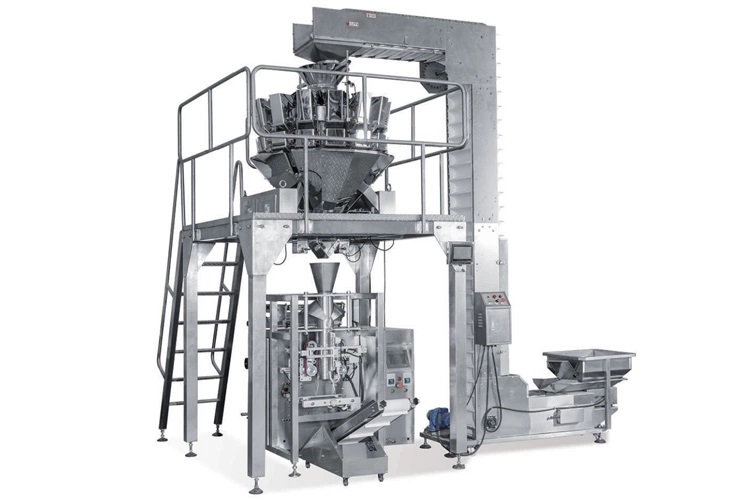

Whole machine main including such parts:

1) Z type bucket elevator

2) Computer combination scale

3) Platform

4) Packing machine host

5) Finished products conveyor( If needed)

NOTE:PARAMETERS ARE ONLY FOR REFERENCE, ALL PRODUCTS CAN BE CUSTOMIZED

Application:

Suitable for cube ice, meatball, popcorn, french fries, biscuit, candy, dumpling, chocolate, frozen food, chicken leg, hardware etc.food weigher and packing machine,packing food machine,packing machine for food,etc.
