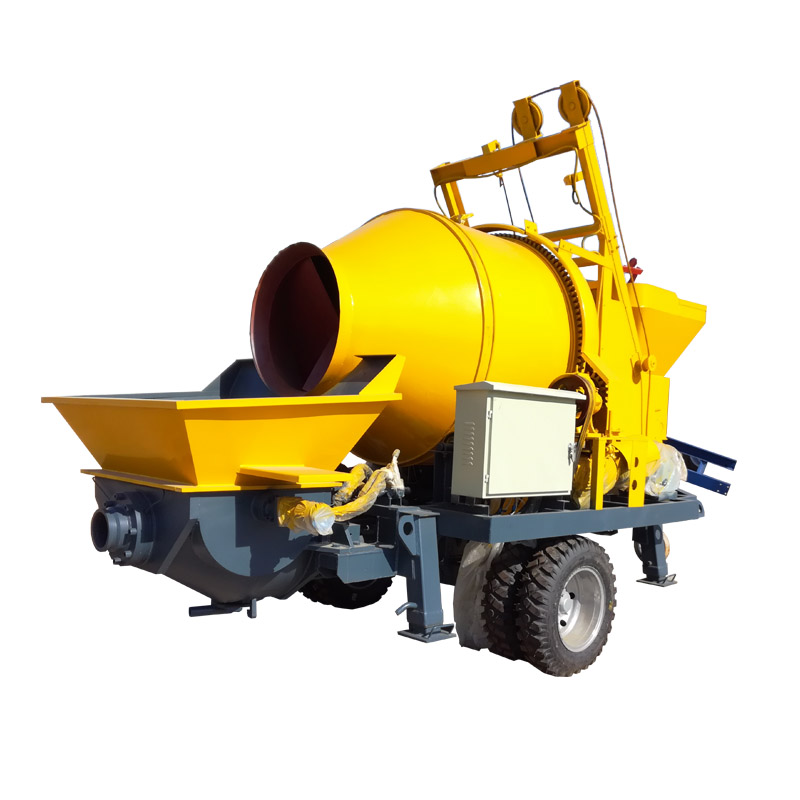

by Product Pictures:
Product Descriptions：
Concrete Mixer Pump is a multi function machine which combines the function of concrete mixer and concrete pump. It can produce and deliver concrete. The mixer can be drum mixer, twin-shaft mixer and planetary mixer.
World famous brands of main parts are used for our concrete mixer pump, such as: Korean Kawasaki oil pump, Italy Manuli hydraulic hose, Japanese OMRON PLC, USA Parket seal, France Schneider electrical elements etc.
The concrete mixer pump can be diesel powered or electricity powered. If you have power supply on job site, electricity powered concrete mixer pump can be shosen because it is more cost-saving.
|
Item
|
Units
|
Parameters
|
|
|
JBS40-10-82R
|
|||
|
Whole performance of machine
|
Pump Max. theoretical. concrete output
|
m3/h
|
40
|
|
Charging (hopper) capacity of mixer
|
m3
|
0.56
|
|
|
Discharging capacity of mixer
|
m3
|
0.35
|
|
|
Max. concrete pumping pressure
|
Mpa
|
10
|
|
|
Distribution valve type
|
S Valve
|
||
|
Concrete cylinder diameter stroke
|
mm
|
Ф180×1000
|
|
|
Hopper capacity
|
L
|
600L
|
|
|
Outlet diameter
|
mm
|
Ф125
|
|
|
Power system
|
Diesel engine model
|
—
|
weichai
|
|
Electrical engineering power
|
kW
|
82KW
|
|
|
Rotate speed
|
r/min
|
2300
|
|
|
Hydraulic system |
Circuit type
|
Open circuit
|
|
|
Pumping system pressure
|
MPa
|
31.5
|
|
|
Mixing system pressure
|
MPa
|
6
|
|
|
Capacity of oil tank
|
L
|
350
|
|
|
The max. Delivery distance (vertical/horizontal)
|
m
|
150/600
|
|
|
Other parameters |
Mixer capacity
|
M3/h
|
10-14m3/h
|
|
Max. aggregate diameter
|
mm
|
40
|
|
|
Inside diameter of delivering pipe
|
mm
|
Ф125
|
|
|
Dimensions:length*width*height
|
mm
|
6900x2300x3150
|
|
|
Total weight
|
kg
|
8500kg
|
|
|
Tire
|
Pcs
|
4
|
|
|
Oil pump
|
FLUTEK Kawasaki
|
||
|
PLC
|
Japanese OMRON
|
||
|
Hydraulic pipe
|
Italy Manuli
|
||
|
Oil seal
|
American Parket
|
||
|
Electric control elements
|
French Schneider
|
||
|
Intermediate relay
|
French Schneider
|
||
|
Control mode
|
Remote control
|
||
These parameters are for reference only. We also have many machines and equipment with different parameters.
Main Features:
1) Saving cost; one machine has two functions: producing concrete and delivering concrete;
2) Saving labours; one operator is ok;
3) Easy to operate; remote control is available;
4) Reliable performance; If the machine is operated properly, it can work properly more than 5 years;
5) Easy to move; the machine has wheels, we can use a car to tow it to another job site easily.

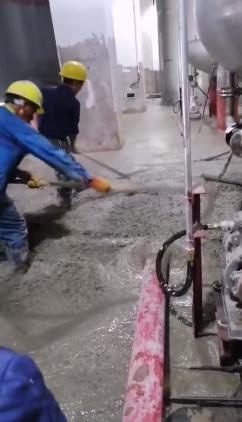

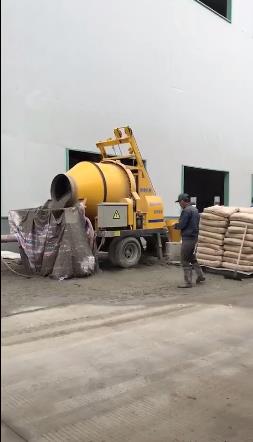

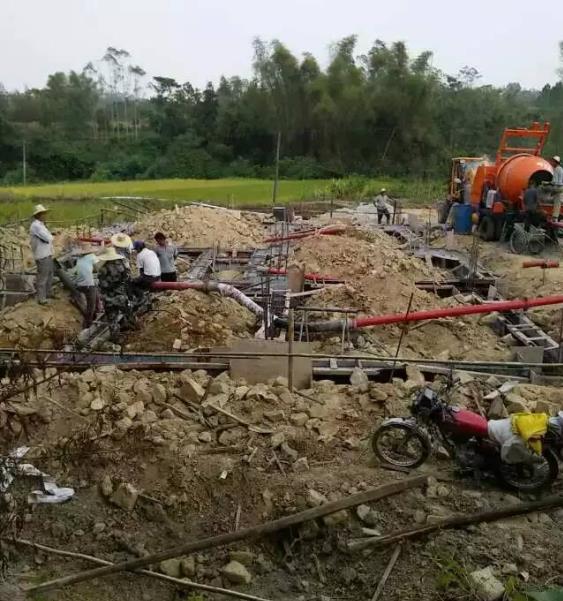

Application:

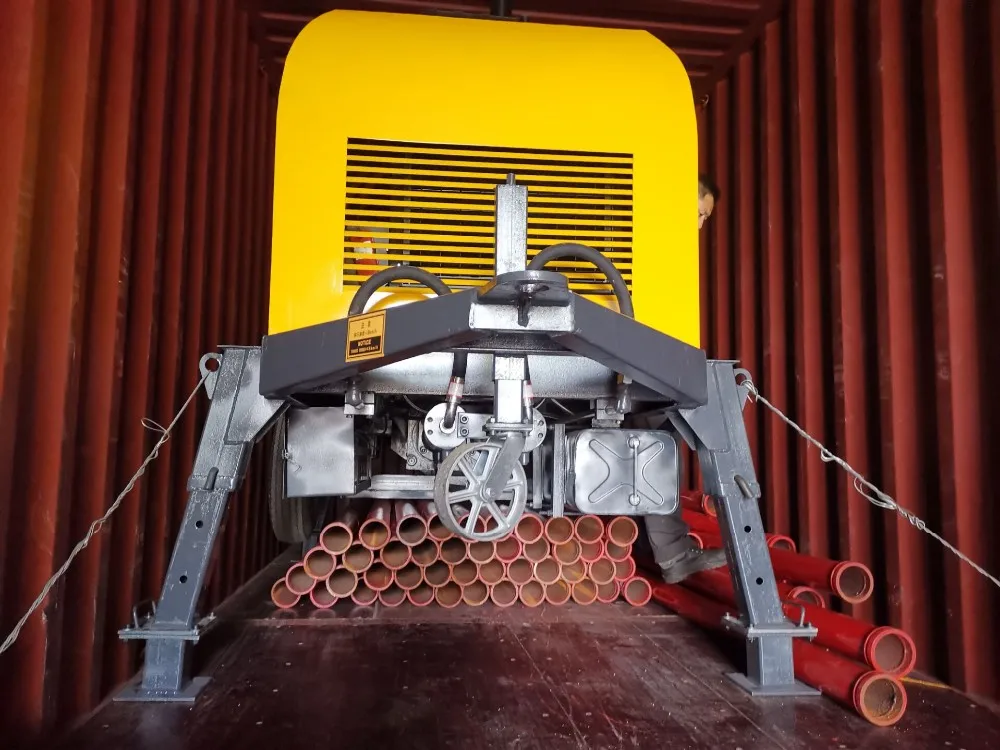

Package:
Payment Details:
| Payment Method | T/T OR 100% L/C AT SIGHT | ||||
|---|---|---|---|---|---|
