Product Descriptions：

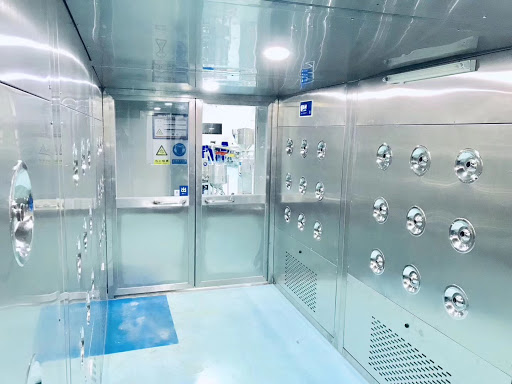

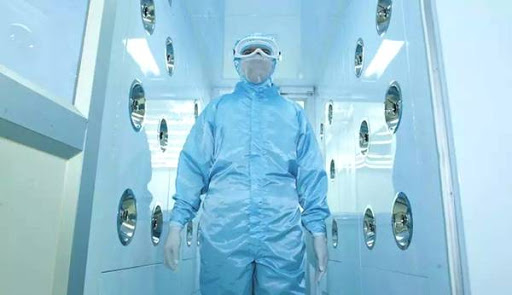

The air shower room is the equipment of clean workshop and fabricated clean chamber, which is used to blow away the dust attached to the surface of human body and carried articles entering the purified workshop. At the same time, the shower room also acts as an air lock to prevent unpurified air from entering the clean area, and is an effective equipment for purifying human body and preventing external air from polluting the clean area.
Principle:
The air in the shower room enters the static pressure box through the primary filter under the action of the fan, and after being filtered by the high-efficiency air filter, the clean air is ejected from the nozzle of the shower room at high speed, and the nozzle angle can be adjusted, which can effectively blow off the dust attached to the surface of people or carried articles, and the blown dust can be recycled into the primary air filter, thus achieving the purpose of air shower.
| Parameters/Model | AS-1 | AS-2 | AS-3 | AS-4 |
| Filtration efficiency | >=0.3um,>=99% | |||
| Nozzle air speed | >=25m/s | |||
| Nozzle qty | 6 pcs | 12pcs | 18pcs | 24pcs |
| Air capacity | 1000m3/h | 2000m3/h | 3000m3/h | 4000m3/h |
| Voltage | 380v/50hz/3phase or 220v/50hz/single-phase or can be customized | |||
| Weight: | 300kg | 500kg | 600kg | 900kg |
| Power: | 0.55kw | 1.1kw | 1.5kw | 2.2kw |
| Machine material: | stainless steel or can be customized | |||
| Floor material: | stainless steel | |||
| Machine size | 1200*1000*2100 | 1500*1000*2100 | 1500*1600*2100 | 2100*2000*2100 |
| Channel size | 800*900*1950 | 900*900*1950 | 900*1500*1950 | 1500*1900*1960 |
| Spec&qty of high efficiency filters | 484*600*50*1 | 600*600*50*2 | 820*600*50*2 | 600*600*50*4 |
| Spec&qty of LED | 14w*1 | 14w*1 | 14w*2 | 14w*2 |
NOTE:PARAMETERS ARE ONLY FOR REFERENCE, ALL PRODUCTS CAN BE CUSTOMIZED

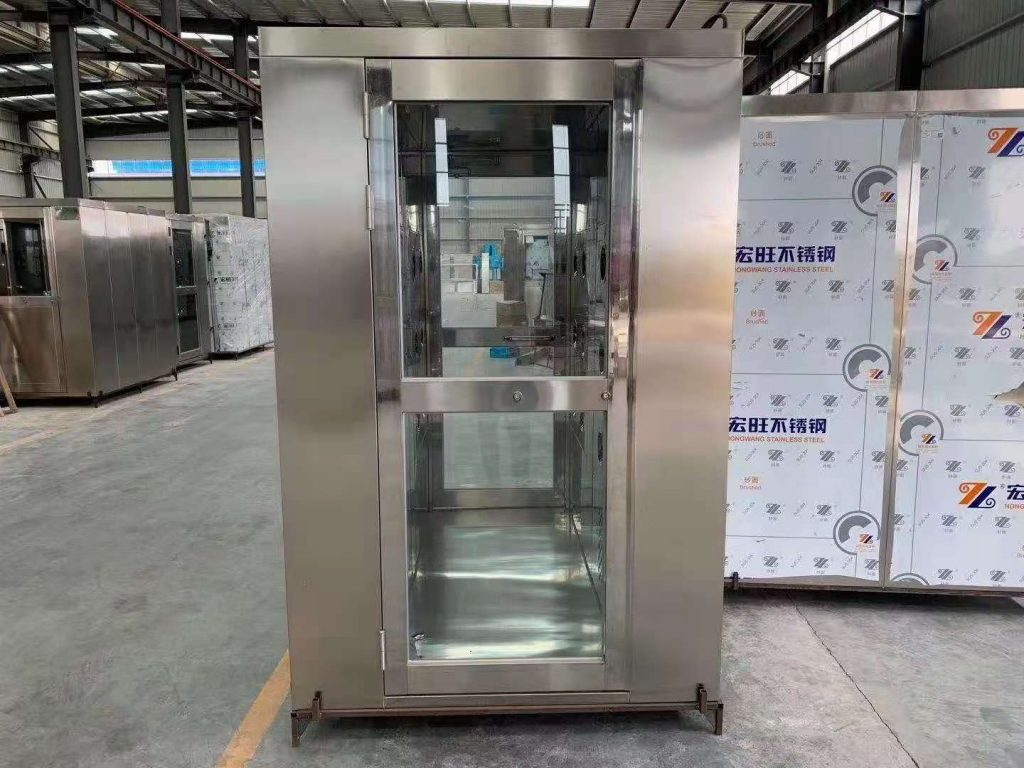

Structure:
The air shower rooms are all equipped with foamed heat-insulating colored panels and aluminum alloy components, equipped with centrifugal fans and primary and high-efficiency air filters, which have the characteristics of beautiful appearance, compact structure, convenient maintenance and simple operation.
1.COMPACT DIMENSIONS
2.SAFETY FRAME
3.SIMPLE CONTROL
4.EASY MAINTENANCE
5.VERSATILITY
6.EXTENDING UNDERCARRIAGE
Application:

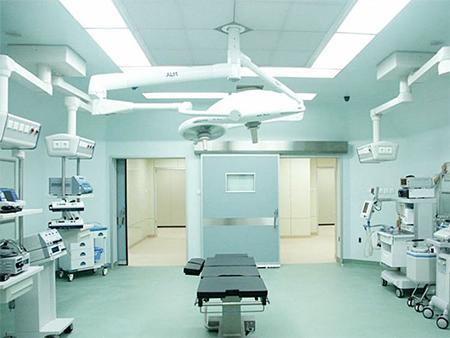

The air shower is widely used in semiconductor factory, microelectronics factory, biological pharmaceutical factory, etc.

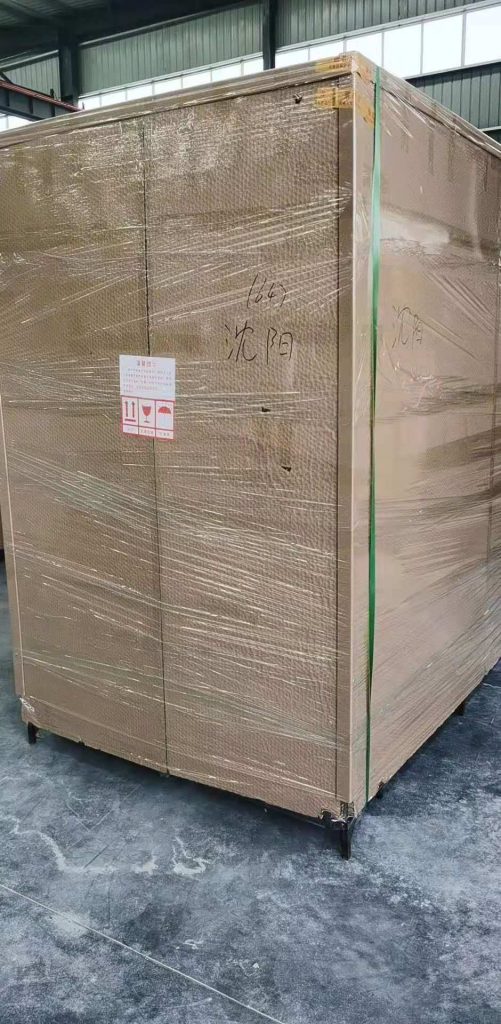

Package:
Payment Details:
| Payment Method | T/T OR 100% L/C AT SIGHT | ||||
|---|---|---|---|---|---|
